Bullet Points

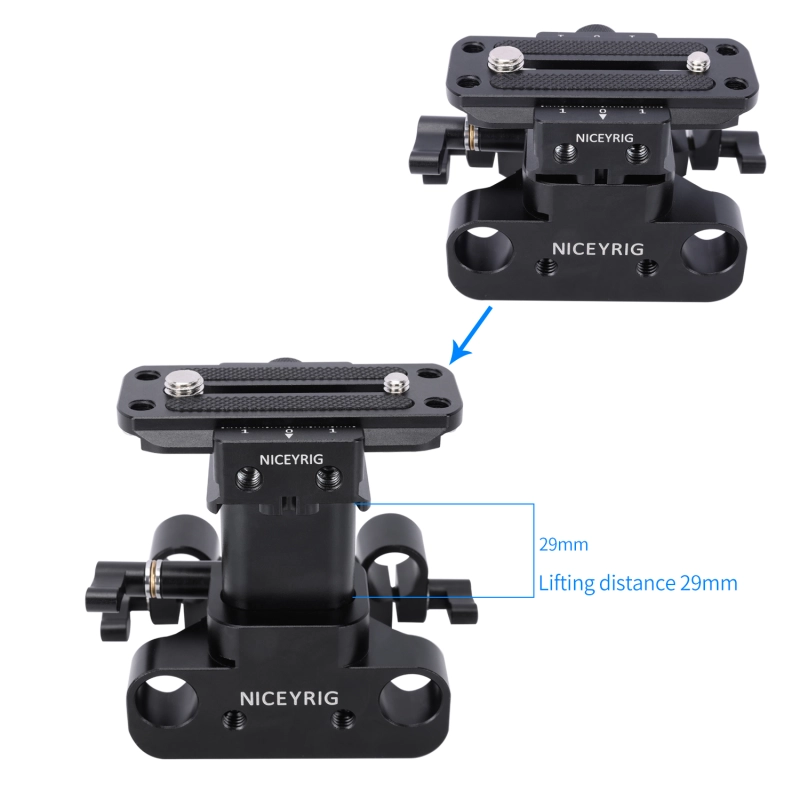

1. Enables 29mm height adjust by a wingnut screw
2. The height from the QR plate to the rod center ranges from 47mm to 76mm
3. Features Arca-type quick release plate on top for convenient switching to stabilizer mode

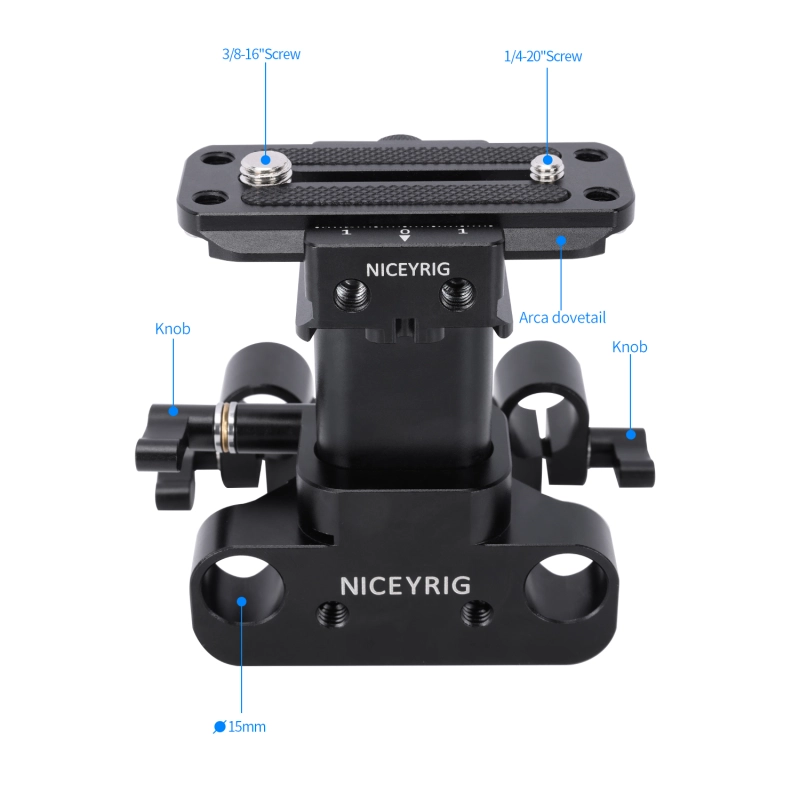

4. Compatible with dual 15mm rail system for accessories extension attachment
5. Equipped with multiple 1/4 and 3/8 thread holes on the bottom for tripods mounting
Description

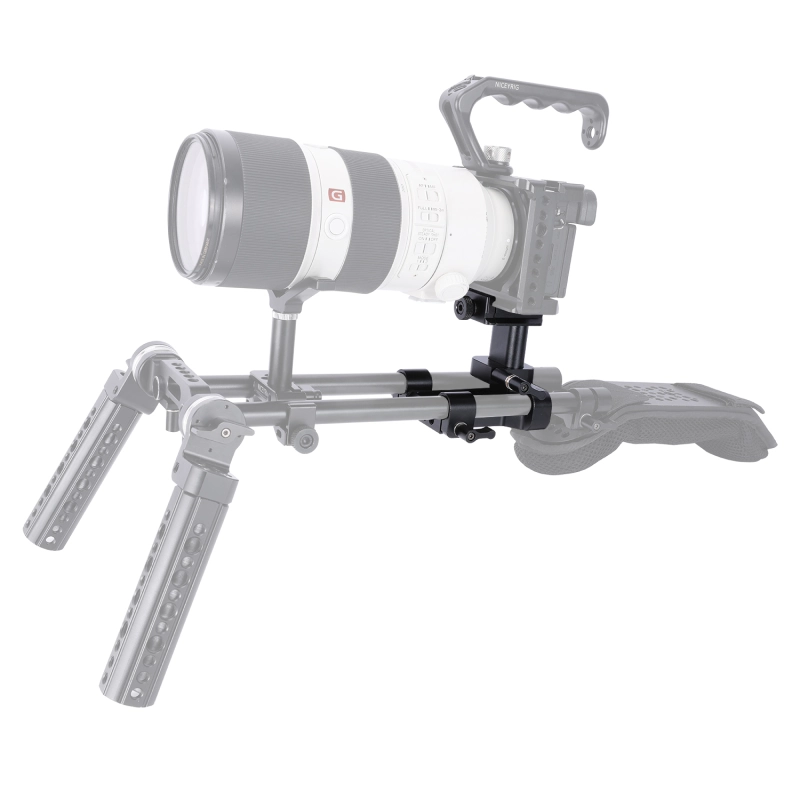

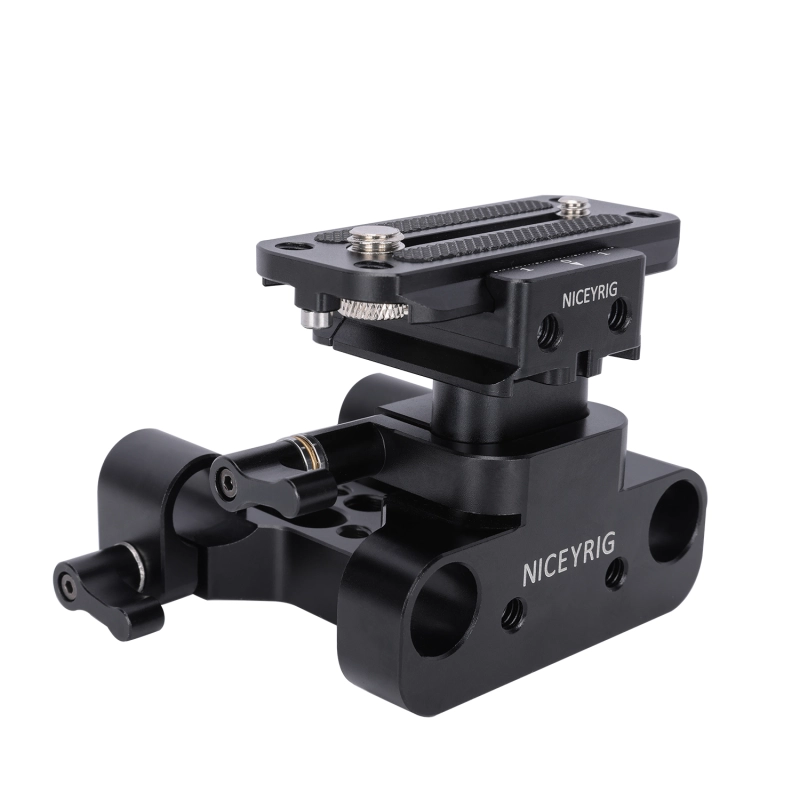

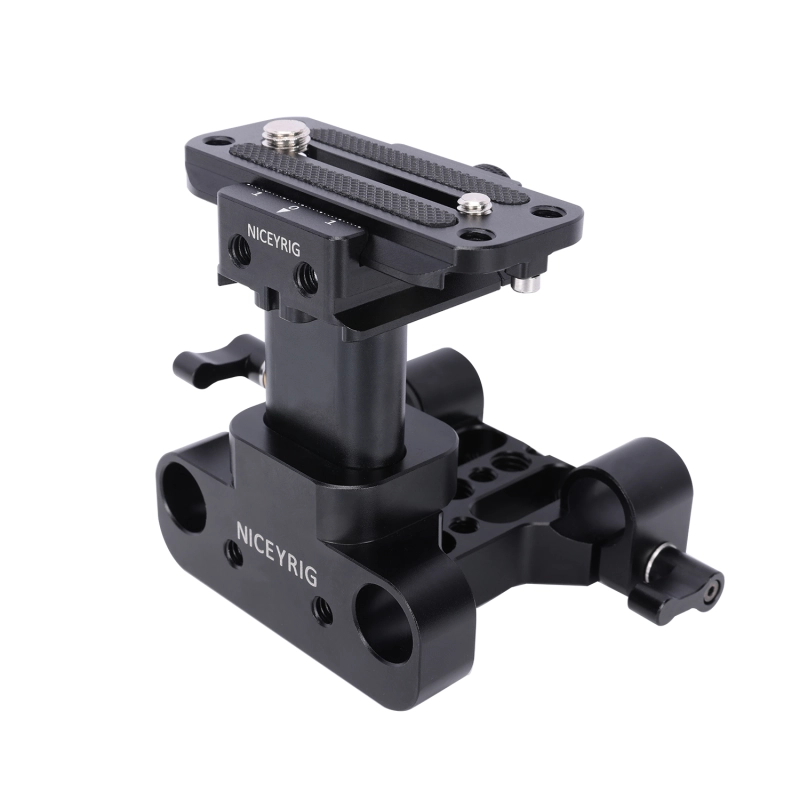

Niceyrig universal lifting baseplate 548 is integrated by Arca-type QR plate and 15mm rail system to provide extension accessories mounting options for cameras. It allows quick attachment and release by wingnut screws, arca standard dovetail clamp on top can attach with camera cages directly via arca-swiss bottom plate and convenient for quick switching in shoulder support kits, tripods and stabilizer modes. It can attach follow focus,lens support,matte box and other extension rigs by 15mm rails and also compatible with shoulder rigs support kits. It equipped with multiple 1/4 and 3/8 thread holes on the bottom for tripod mounting and DIY operations. The distance from the center of the lens to the center of the rods is 85mm which ensures reasonable optical height.
Compatibilty：
Universal
15mm Rail System

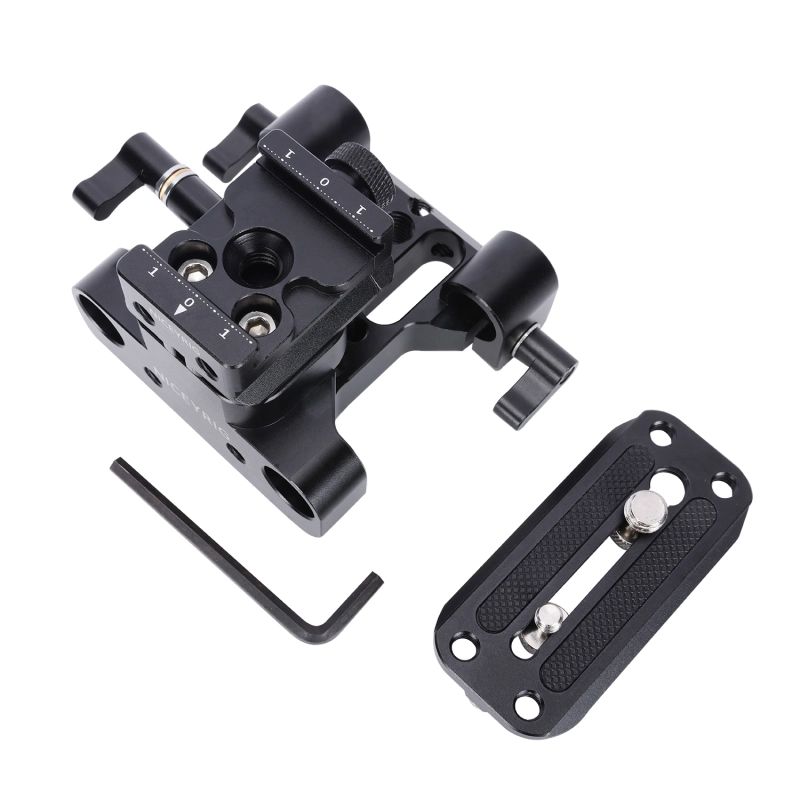

Package Includes:
1 x Base Plate
1 x 1/4’’ Mounting Screw
1 x 3/8’’ Mounting Screw
1 x Hex Spanner
Net weight:317g
Package weight:374g
Package dimensions:13*9*8(cm)
Material:Aluminum Alloy
Surface treatment:CNC/Sand blasting/Grey oxided
